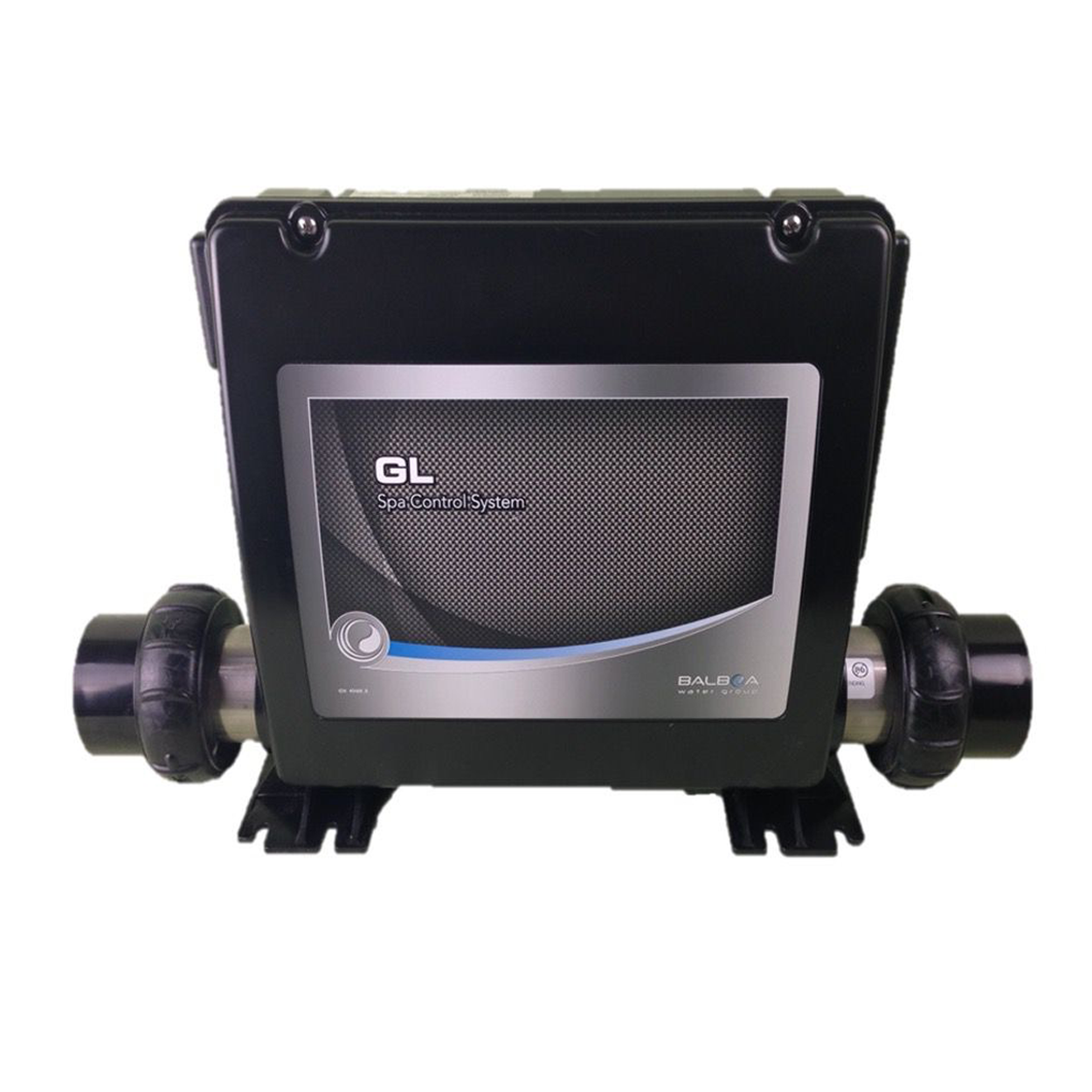

Balboa GL2000M3 Controller 3.0Kw Ti
SKU : B-55574
Description
Balboa GL2000M3 Controller Titanium.
Touchpad sold separately.
GL2000M3 240volt Output Sockets
CPUMP: Circulation Pump (Must be used if Pump 1 1Spd)
PUMP 1: 1Spd Pump or 2Spd Pump
PUMP 2: 1Spd Pump or 2Spd Pump
BLOWER: Blower
240V: This outlet has a constant 240volts and is not switchable
O3/UV: This outlet is only to be used with an ozone system
GL2000M3 Voltage
3 x Touchpad Outlets
2 x AUX Touchpads
1 x Light
GL2000M3 Features
*In heater temp sensors
*Max Temp 40 degrees
*Adjustable Filtration
*Sleep & Economy Mode
*Programmable Load Shedding
*Titanium Heater Element
Specifications
Controller Specifications
Heater Wattage: 3000w
Max Current: 32amp
Power Lead: Hard Wired
Power Lead Length: N/A
Heater Unions: 50mm
Controller Dimensions
Length: 382mm
Height: 310mm
Width: 110mm
Weight: 5.1kg
Warranty:
Comes with a 1 year warranty(Return to base)
*Refer to manufacturers T&C’s.
